DAC2RCD-WF

Two Direction Curved Blade Register w/ Wide Flange

 thumbnail

New Customers

Get a Quote

Returning Customers

Portal Quote & Order
3 day ship guarantee

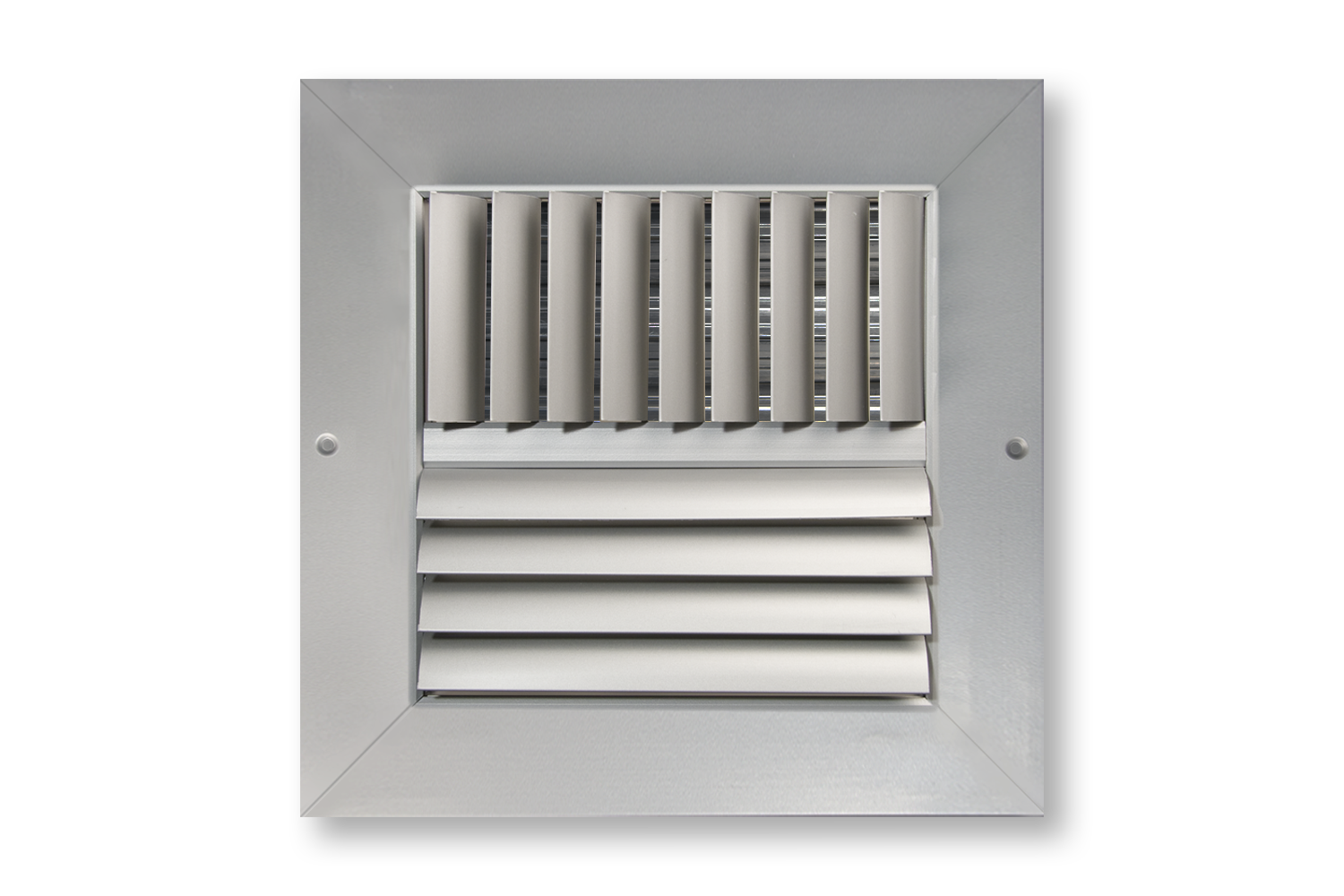

The DAC2RCD-WF is a curved blade register with adjustable vertical and horizontal blades, and wide flange. It can direct air when used in a corner.

Features

  • Wide flange for additional mounting surface coverage.
  • Vertical, adjustable blades on a 1" spacing
  • Blades are curved up and to the left to direct air flow
  • Architectural aluminum construction with extruded frame and roll-formed blades
  • Rattle-free performance with pressure-fitted blades
  • Opposed blade damper with concealed operator design
  • Available on 2" standard dimensions
  • Custom sizes manufactured up to 1/16" increments
  • Available in durable powder coat finish standard

Finishes




W | White


S | Silver

M | Mill


W - White



S - Silver



M - Mill

Common Uses

The DAC2RCD-WF is commonly used in sidewall or ceiling applications. Its curved blades direct air up and to the left, making it ideal for corners.

Additional Options

DAC2RC-WF | No Damper

DAC2LCD-WF | Left Corner

DAC2RCD-WF-AA | All Aluminum

DAC2RCD-WF-TB | No Screw Holes
