DAH

Single Deflection Supply Grille - Horizontal Blade

Dayus Dah White Supply Grille Horizontal Blades

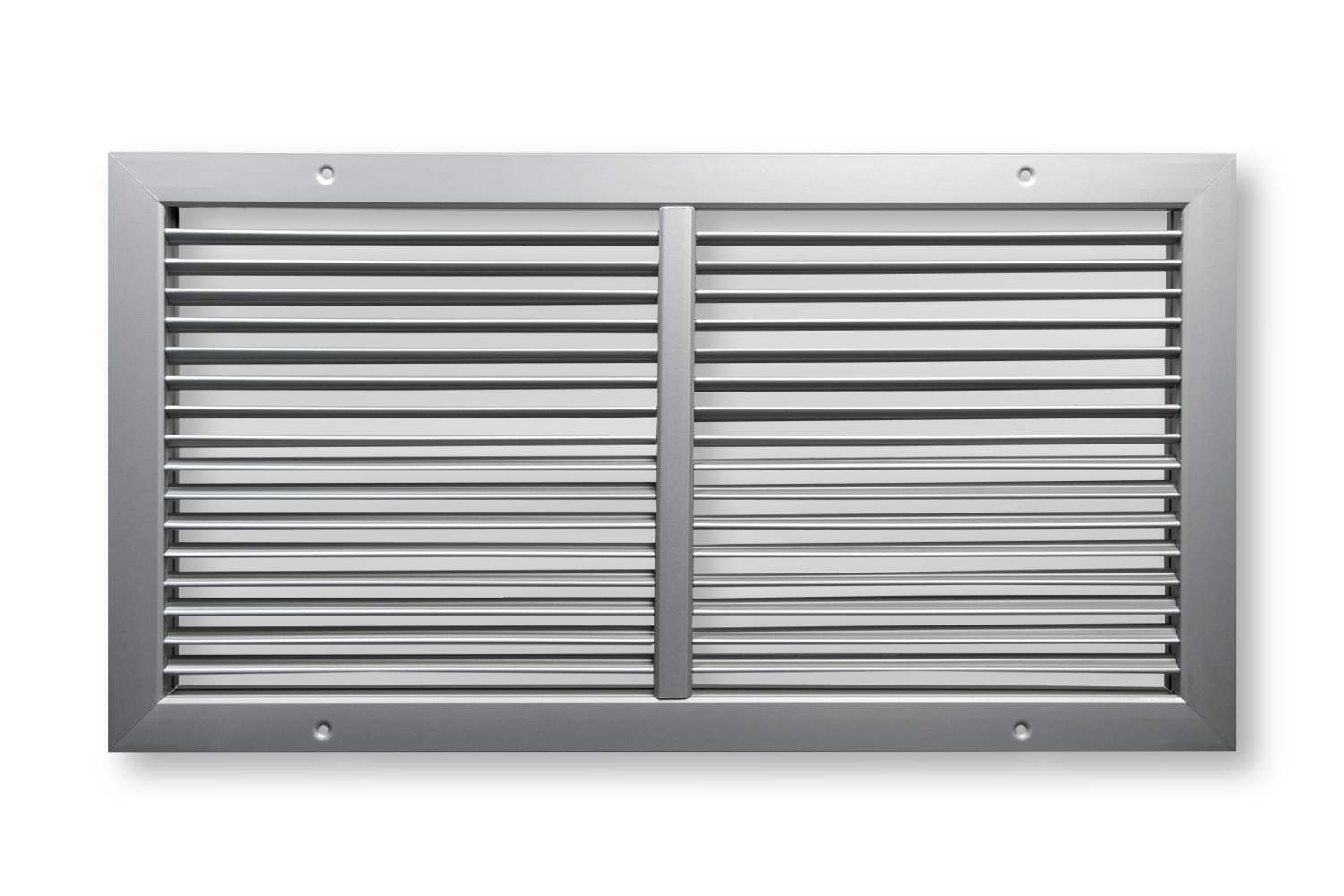

Dayus DAH Silver Supply Grille Horizontal Blades Mullion

Dayus Dah White Supply Grille Horizontal Blades thumbnail

Dayus DAH Silver Supply Grille Horizontal Blades Mullion thumbnail

New Customers

Get a Quote

Returning Customers

Portal Quote & Order

The DAH is a single deflection aluminum grille with individually adjustable blades. The horizontal blades can adjust the spread of air.

Features

Adjustable, semi-airfoil blades on 2/3" spacing
Architectural aluminum construction with extruded frame and roll-formed blades
Rattle-free performance with pressure-fitted blades
Sealing gasket to prevent streaking on walls or ceiling
Available on 2" standard dimensions
Custom sizes manufactured up to 1/16" increments

Finishes


W \| White		S \| Silver		M \| Mill

	W - White
	S - Silver
	M - Mill

Common Uses

The DAH is commonly used as a sidewall grille for supply air. It's easy to install and the adjustable deflection makes it ideal in most ceiling and surface mount uses.

Additional Options

DAHD \| Opposed Blade Damper	DAH-TB \| No Screw Holes
DAHM \| Multi- Shutter Damper	DAH-AA \| All Aluminum Construction

DAH Submittal

Dayus Supply Performance Data

DAH Detail Drawing - 1 Mullion - 20-36" Length, Any Height DAH Detail Drawing - 2 Mullions - 38-54" Length, Any Height DAH Detail Drawing - 3 Mullions - 56-72" Length, Any Height DAH Detail Drawing - 4 Mullions - 74-90" Length, Any Height DAH-NF Detail Drawing DAH Detail Drawing - No Mullion - 4-18" Length, Any Height

DAHD \| Opposed Blade Damper	DAH-TB \| No Screw Holes
DAHM \| Multi- Shutter Damper	DAH-AA \| All Aluminum Construction
