DARE5-45-WF

45° ½” Eggcrate Grille w/ Wide Flange

New Customers

Get a Quote

Returning Customers

Portal Quote & Order

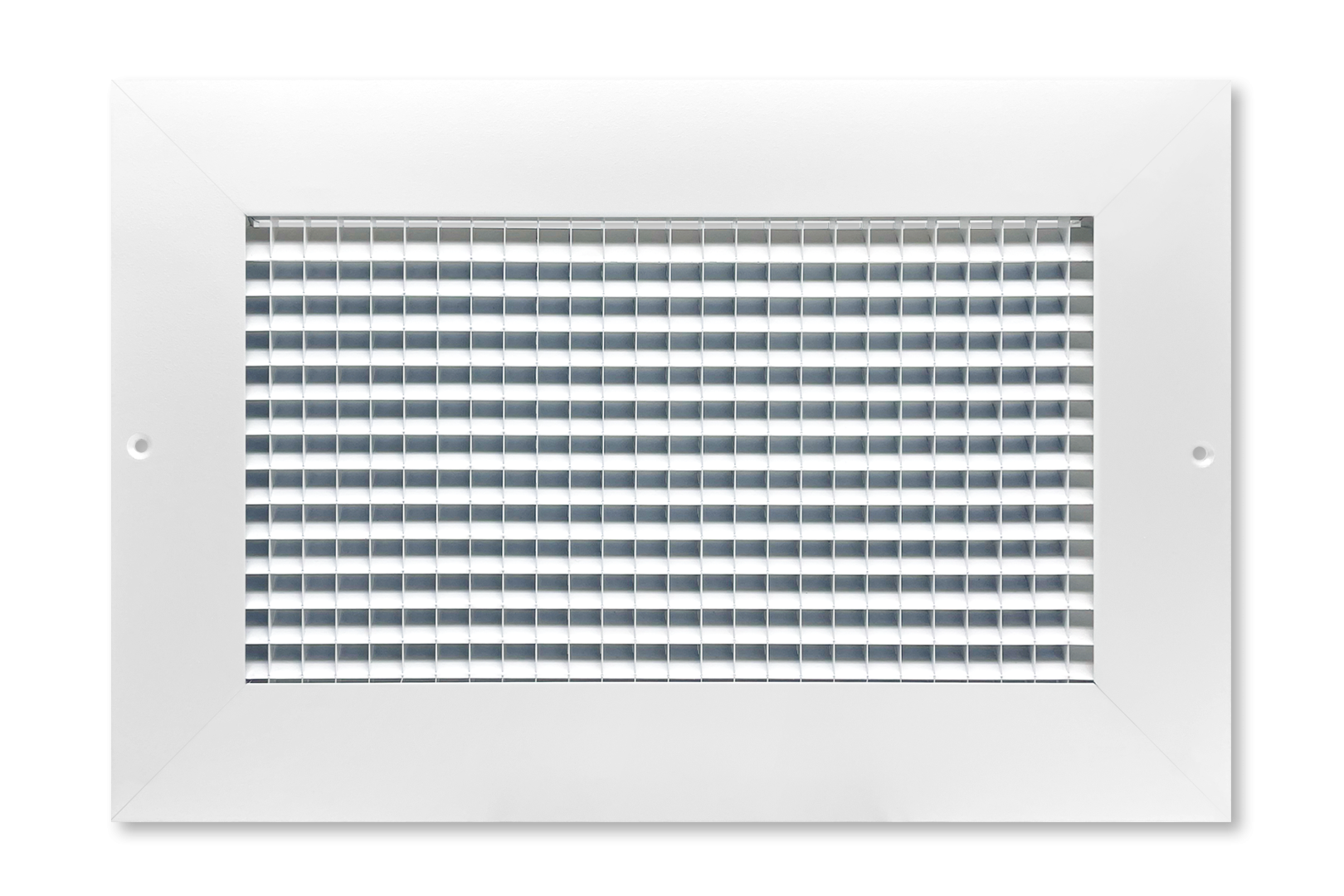

The DARE5-45-WF is a wide flange eggcrate grille with a 1/2" cube core on a 45° deflection. This aluminum register has a high free area to changeover large volumes of air.

Features

Wide flange for additional mounting surface coverage.
1/2" x 1/2" x 1/2" aluminum eggcrate with a 45° deflection
Architectural alumium construction with extruded frame and eggcrate core
Available on 2" standard dimensions
Custom sizes manufactured up to 1/16" increments
Maximum size 48 x 84" or 84 x 48"

Finishes


W \| White

	W - White
	S - Silver
	M - Mill

Common Uses

The DARE5-45-WF is available with or without countersunk mounting holes, which makes it ideal for drywall sidewall and ceiling or T-Bar ceiling panel lay-in applications. Its cube design matches grid core luminaries. The 45° deflection is sight-resistant.

Additional Options

DARE5D-45-WF \| Opposed Blade Damper	DARE5-45 \| Standard Flange
DARE5-WF \| No Deflection	DARE5D-WF \| No Deflection with Damper
DARE5-45-WF-TB \| No Screw Holes	DARE5-45-WF-AA \| All Aluminum

DARE5-45-WF

DARE5D-45-WF \| Opposed Blade Damper	DARE5-45 \| Standard Flange
DARE5-WF \| No Deflection	DARE5D-WF \| No Deflection with Damper
DARE5-45-WF-TB \| No Screw Holes	DARE5-45-WF-AA \| All Aluminum
