DARE5-FG

1" Eggcrate Filter Grille

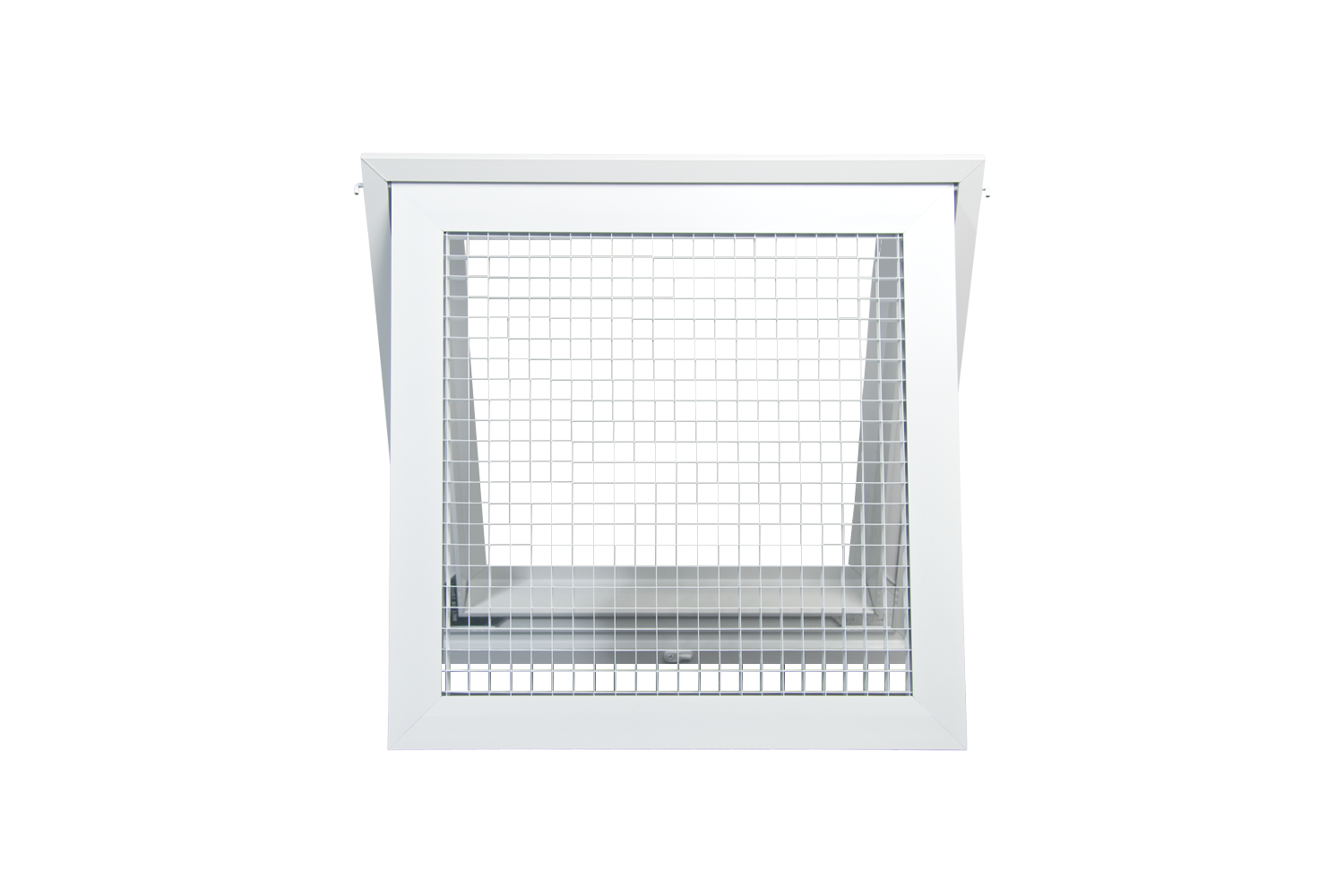

Dayus White DARE5-FG Eggcrate Cube Core filter Grille Ceiling 1"
Dayus White DARE5-FG Eggcrate Cube Core filter Grille Ceiling 1"
Dayus Silver DARE5-FG Eggcrate Cube Core filter Grille Ceiling 1"
Dayus Silver DARE5-FG Eggcrate Cube Core filter Grille Ceiling 1"
Dayus White DARE5-FG Eggcrate Cube Core filter Grille Ceiling 1" thumbnail
Dayus White DARE5-FG Eggcrate Cube Core filter Grille Ceiling 1" thumbnail
Dayus Silver DARE5-FG Eggcrate Cube Core filter Grille Ceiling 1" thumbnail
Dayus Silver DARE5-FG Eggcrate Cube Core filter Grille Ceiling 1" thumbnail

New Customers

Get a Quote

Returning Customers

Portal Quote & Order
3 day ship guarantee

The DARE5-FG is a return blade filter grille that fits a 1" filter.

Features

  • 1/2" x 1/2" x 1/2" aluminum cube core
  • Architectural aluminum construction with extruded frame
  • Top and bottom mounting options: spring pins, wire hinge, nylon thumb screw, nylon screen and tabs, security screen. Top mounting method recommended spring pins or wire hinge only
  • Accommodates a standard 1" filter
  • Available on 2" standard dimensions
  • Custom sizes manufactured up to 1/16" increments
  • Quiet, rattle-free performance.

Finishes




W | White


S | Silver

M | Mill


W - White



S - Silver



M - Mill

Mounting Options

Note: Only A and B are suggested for top mounting option.





A | Spring Pin

B | Wire Hinge







C | Nylon Thumb Screw

D | Nylon Screen Tabs
E | Security Screw

Common Uses

The DARE5-FG is used in ceiling or sidewall applications to improve air quality. It provides easy access to inconveniently located air units.

Additional Options

DARE5-FG2 | 2" Filter

DARE5-FG4 | 4" Filter

DARE5-FG-TB | No Screw Holes

DARE5D-FG | Opposed Blade Damper
