DARH1D-WF

Return Air Register w/ 1" Blade Spacing

 thumbnail

New Customers

Get a Quote

Returning Customers

Portal Quote & Order
3 day ship guarantee

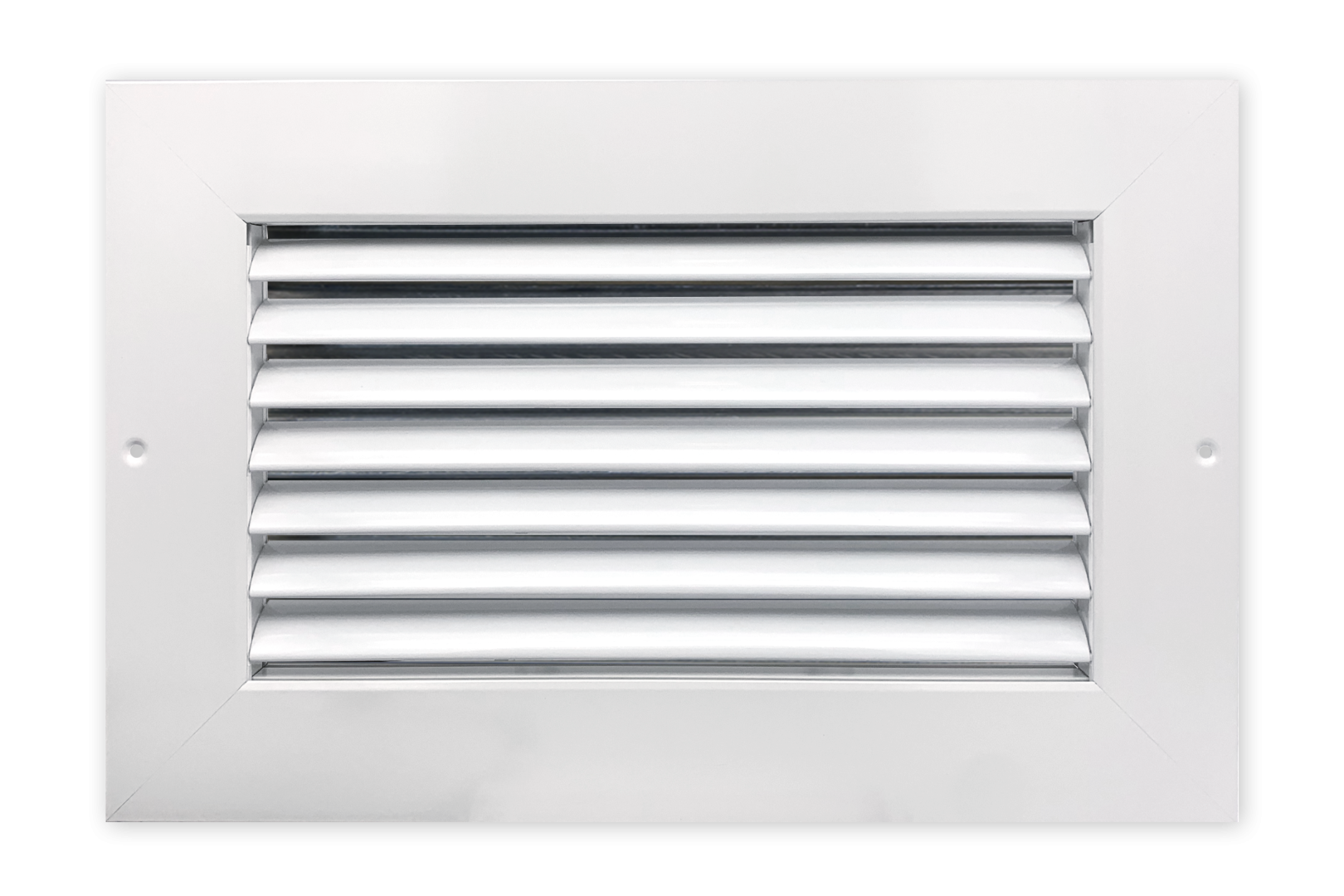

The DARH1D-WF is a return register with blades set on a 30° deflection, 1" spacing and a wide flange. The aluminum grille can be used in sidewall and ceiling applications where maximum free area is needed.

Features

  • Wide flange for additional mounting surface coverage.
  • The return register contains aluminum roll-formed blades set into an extruded aluminum frame.
  • The semi-airfoil designed blades are set on 1” spacing for maximum free area.
  • The horizontal blades are fixed on 30° deflection to direct the spread of air.
  • The opposed blade damper controls airflow and is adjustable using any slender tool.
  • The pressure-fitted nylon pins ensure a rattle-free performance.

Finishes




W | White


S | Silver


M | Mill


W - White



S - Silver



M - Mill

Common Uses

The DARH1D-WF is commonly used as a sidewall register. It's easy to install and the 30° deflection makes it an ideal choice in most ceiling and surface mount uses.

Additional Options

DARHD-WF | 2/3" Blade Spacing

DARH1-WF | No Damper

DARH1D-WF-AA | All Aluminum

DARH1D-WF-IS | Insect Screen

DARH1D-WF-TB | No Mounting
