DAV

Single Deflection Supply Grille - Vertical Blade

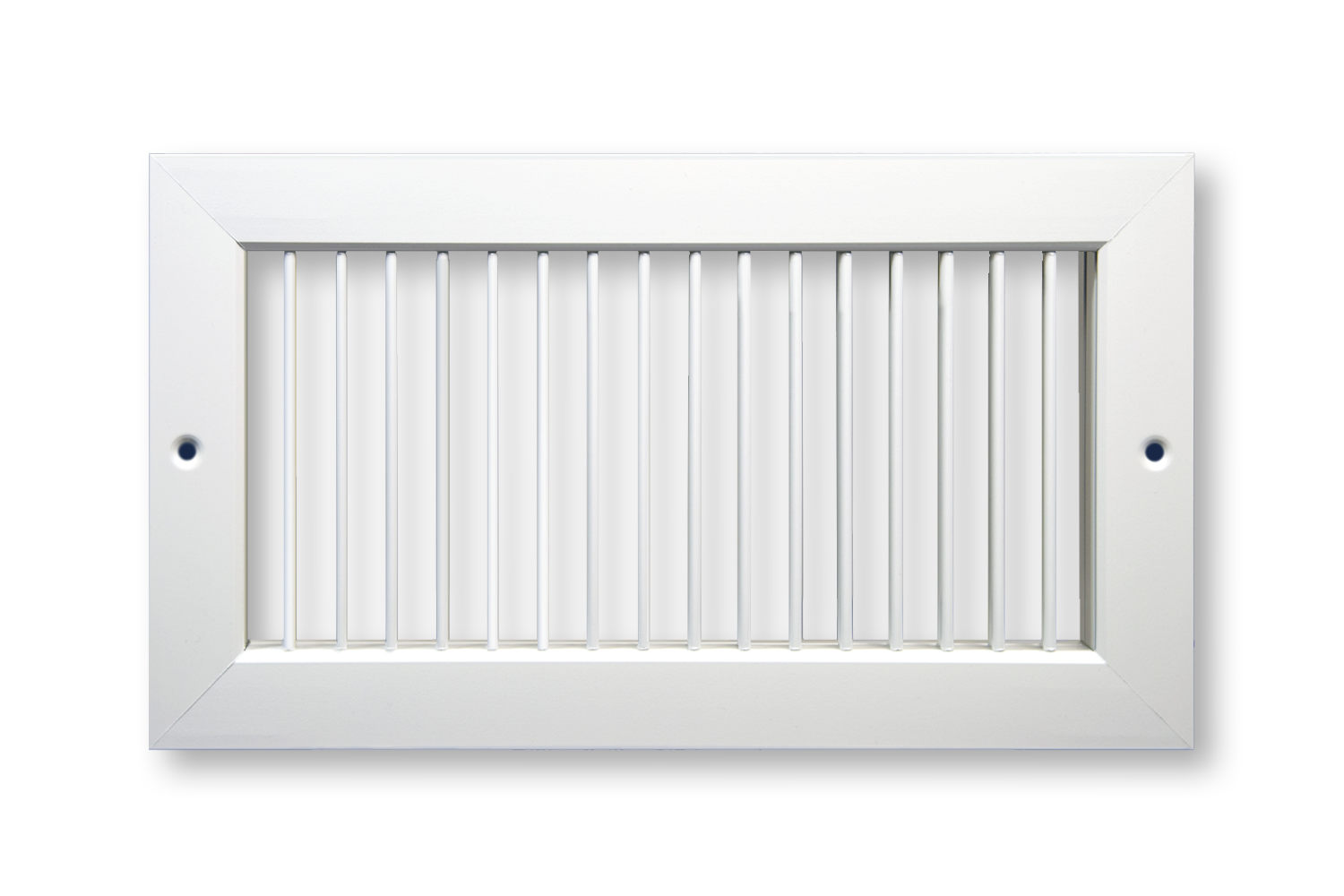

Dayus DAV White Supply Grille with Vertical Blades

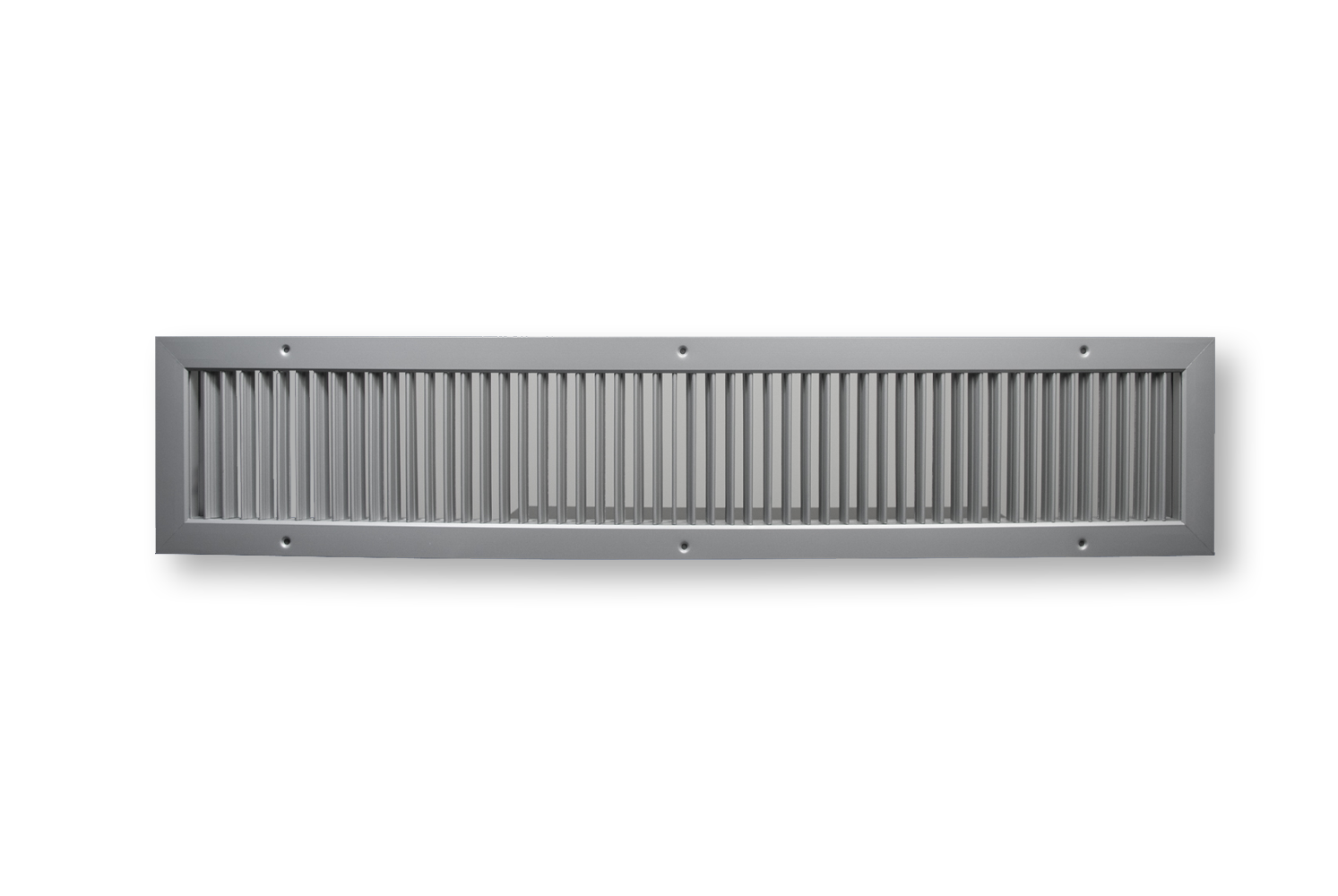

Dayus DAV Mill Supply Grille with Vertical Blades Long

Dayus DAV White Supply Grille with Vertical Blades thumbnail

Dayus DAV Mill Supply Grille with Vertical Blades Long thumbnail

New Customers

Get a Quote

Returning Customers

Portal Quote & Order

The DAV is a single deflection aluminum grille with individually adjustable blades. The vertical blades can adjust the spread of air.

Features

Adjustable, semi-airfoil blades on 2/3" spacing
Architectural aluminum construction with extruded frame and roll-formed blades
Rattle-free performance with pressure-fitted blades
Sealing gasket to prevent streaking on walls or ceiling
Available on 2" standard dimensions
Custom sizes manufactured up to 1/16" increments

Finishes


W \| White		S \| Silver		M \| Mill

	W - White
	S - Silver
	M - Mill

Common Uses

The DAV is commonly used as a sidewall grille for supply air. It's easy to install and the adjustable deflection makes it ideal in most ceiling and surface mount uses.

Additional Options

DAVD \| Opposed Blade Damper	DAV-TB \| No Screw Holes
DA821 \| Multi-Shutter Damper	DAV-AA \| All Aluminum

DAV Submittal Form

Dayus Supply Performance Data

DAV Detail Drawing - 1 Mullion - Any Length, 20 - 3" Height DAV Detail Drawing - 2 Mullions - Any Length, 38" Height DAV Detail Drawing - 3 Mullions - Any Length, 56" Height DAV Detail Drawing - 4 Mullions - Any Length, 74" Height DAV Detail Drawing - No Mullion - Any Length, 4" Height
