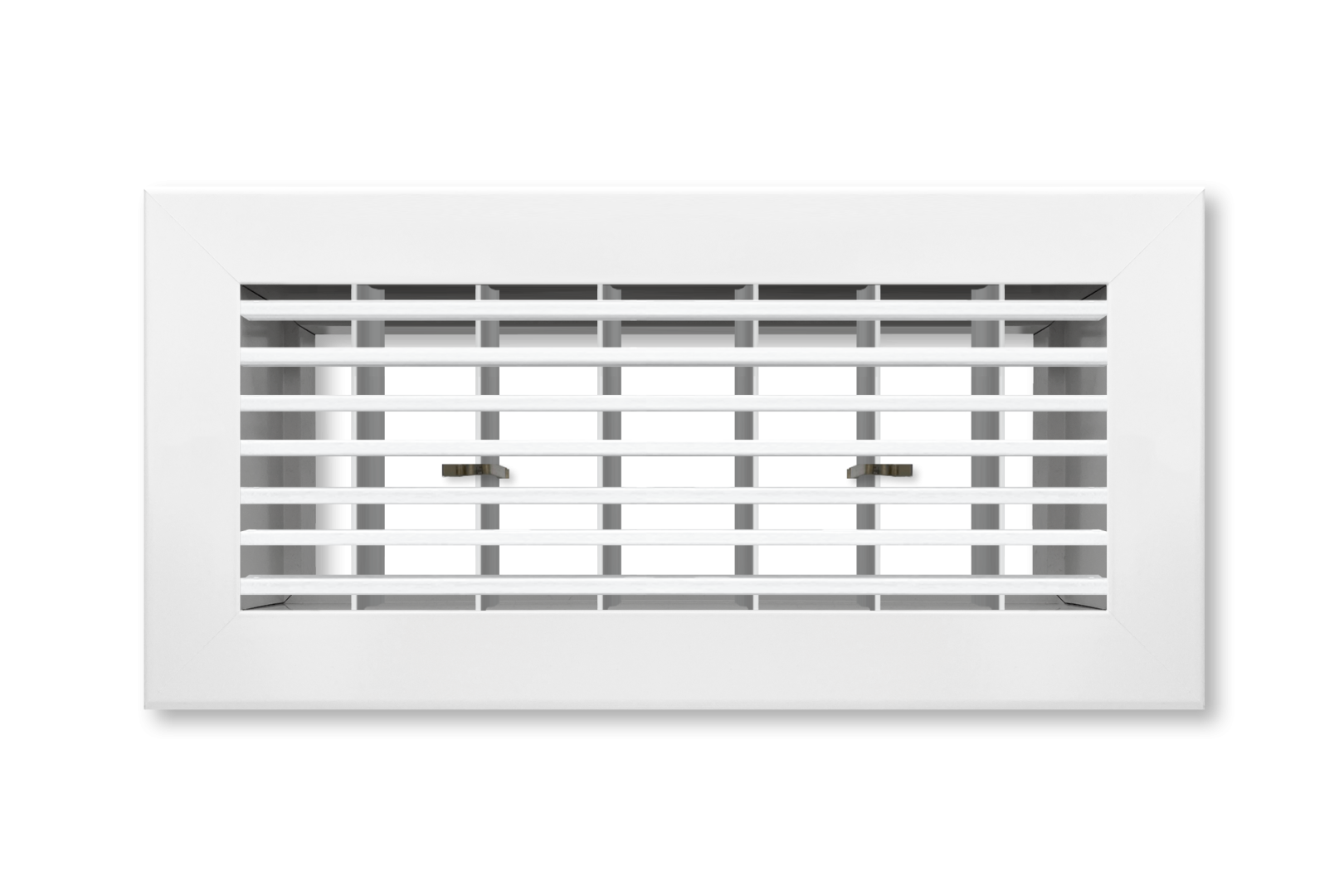

The DAPHR is a heavy duty aluminum bar linear grille with removable core. The DAPHR is suitable for floor use in continuous lengths up to 16" heights. Its customizable, fixed blades are parallel to the long dimension.

Features

Fixed blades run parallel to long dimension
Reinforced heavy duty core has additional supports every 2"
The core is fully removable for cleaning and maintenance and held in place with pressure clips
Designed for floor or reinforced sidewall, sill and ceiling applications
Rattle-free performance
Architectural aluminum metal construction with fully extruded frame and blades
Available on 1/2" standard dimensions
Custom sizes manufactured up to 1/16" increments
Available in durable powder coat finish standard

Finishes


W \| White	S \| Silver	M \| Mill

B \| Brown	FB \| Flat Black	Special

	W - White
	S - Silver
	M - Mill

Common Uses

The DAPHR is commonly used as a floor, sidewall, sill, or ceiling grille. It's easy to install and the customizable mounting and blade options make it ideal in most ceiling and surface mount uses in commercial and residential uses.

Additional Options

DAPHRN \| Fixed Core with No Flange	DAPHRN-TB \| No Screw Holes
DAPHC \| Core Only
