DABL-FG-TB

1" Bar Linear Filter Grille w/ T-Bar Mounting

 thumbnail
 thumbnail

New Customers

Get a Quote

Returning Customers

Portal Quote & Order
3 day ship guarantee

The DABL-FG-TB is a bar linear filter grille that fits a 1" filter and T-Bar mounting. Its customizable, fixed blades are parallel to the long dimension. The DABL-FG-TB complements the appeance of our Bar Linear grilles and registers.

Features

  • Fixed blades are parallel to the long dimension unless specified otherwise
  • Select from six blade options
  • Fully extruded architectural aluminum construction
  • Top and bottom mounting options: spring pins, wire hinge, nylon thumb screw, nylon screen tabs, security screen
  • Fits a standard 1" filter
  • Designed to lay-in standard T-bar ceilings
  • Available on 2" standard dimensions
  • Custom sizes manufactured up to 1/16" increments
  • Available in durable powder coat finish standard


Blade Options







-00 | 0° Deflection


-01 | 0° Deflection

-15 | 15° Deflection







-30 | 30° Deflection

-82 | 0° Air Flow

-84 | 0° Heel Proof (Narrow)



Finishes




W | White


S | Silver


M | Mill


W - White



S - Silver



M - Mill

Mounting Options





B | Wire Hinge

C | Nylon Thumb Screw






D | Nylon Screen Tabs

E | Security Screw

Common Uses

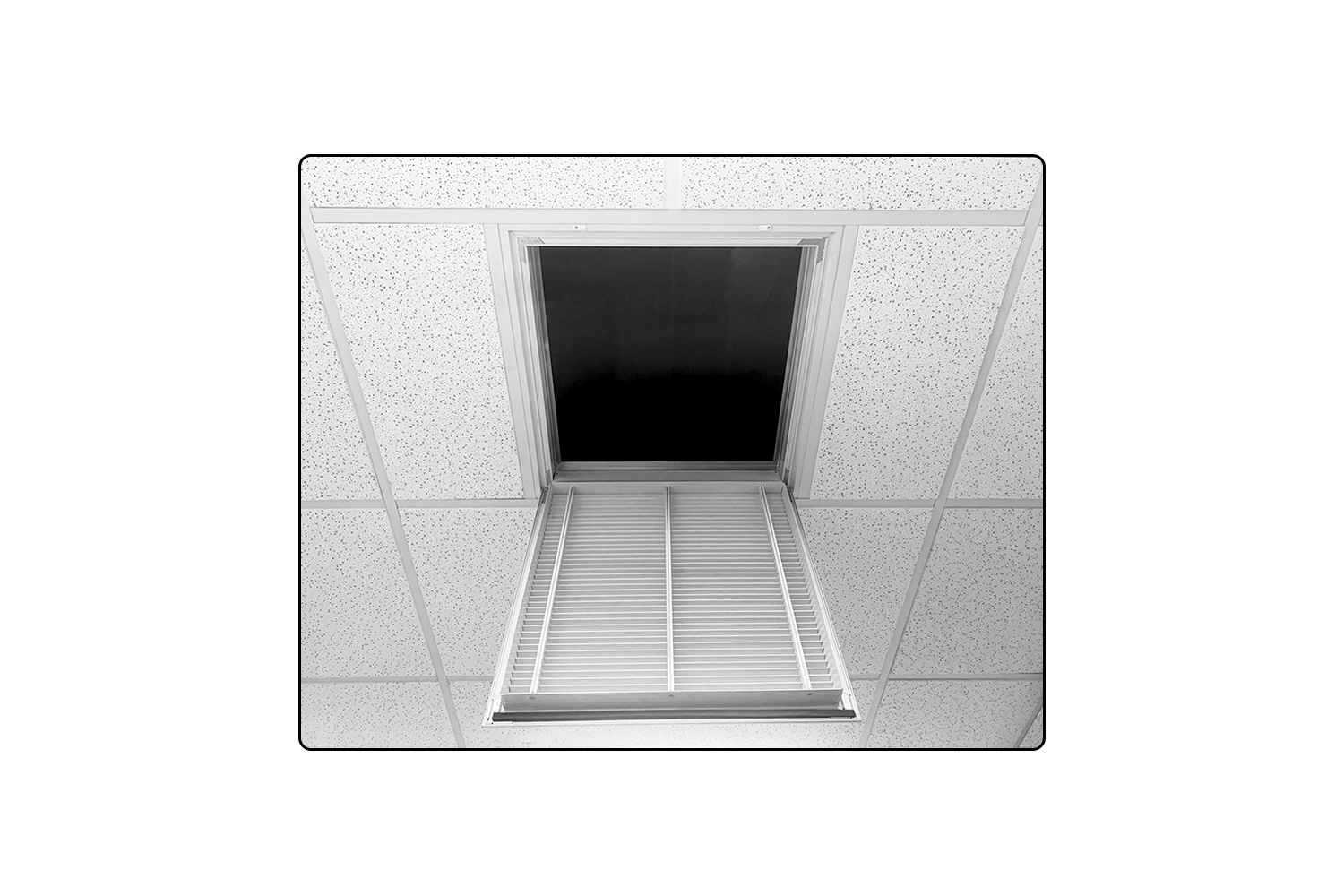

The DABL-FG-TB is used in ceiling applications to improve air quality. It provides easy access to inconveniently located air units.

Additional Options

DABL-FG2-TB | 2" Filter

DABL-FG4-TB | 4" Filter

DABL-FG | Screw Holes
