DARE5D-WF

½” x ½” x ½” Eggcrate Register w/ Wide Flange

New Customers

Get a Quote

Returning Customers

Portal Quote & Order

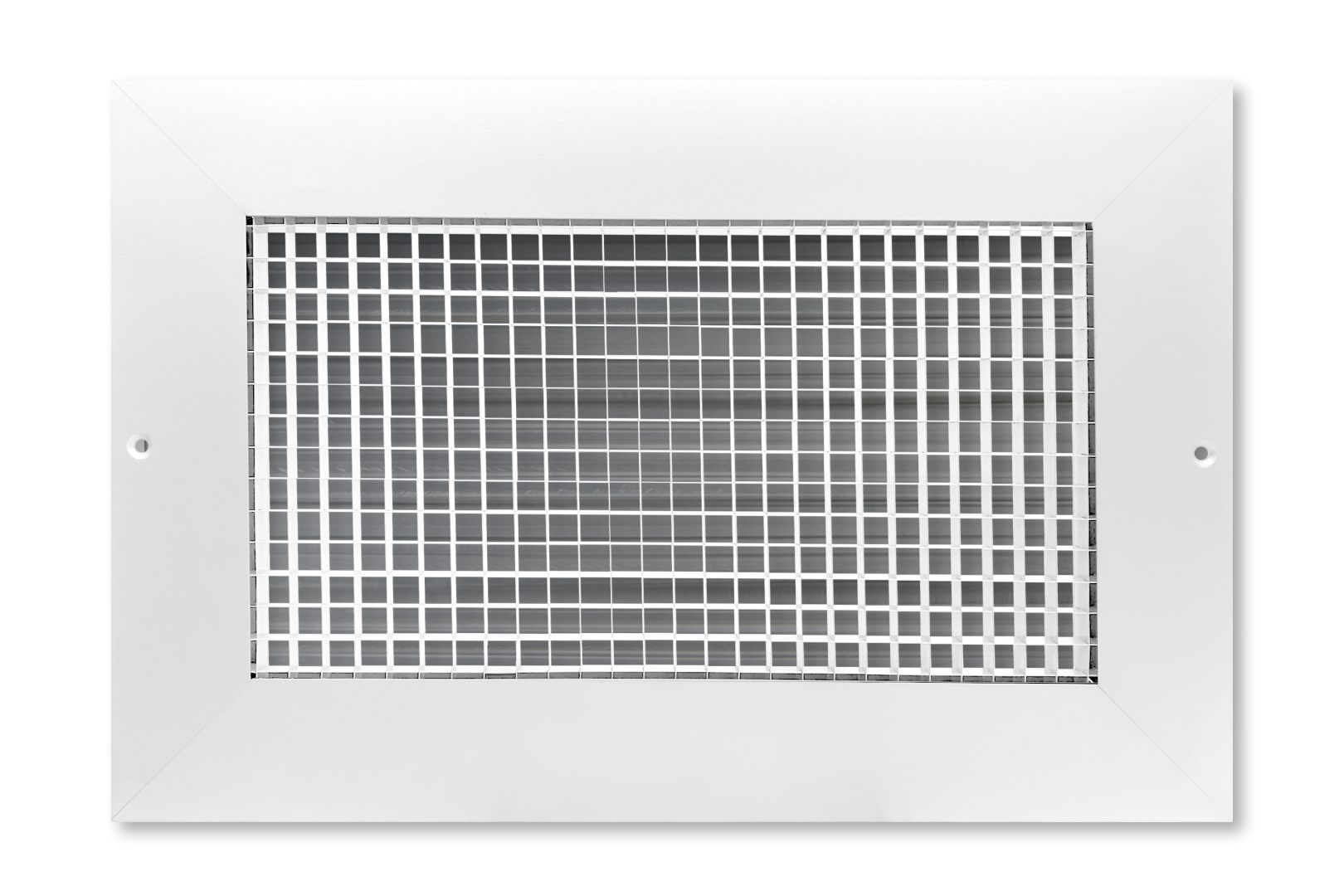

The DARE5D-WF is an eggcrate register with a wide flange and 1/2" x 1/2" x 1/2" cube core. This aluminum register has a high free area to changeover large volumes of air. The Opposed Blade Damper (OBD) adjusts the volume of airflow.

Features

Wide flange for additional mounting surface coverage.
1/2" x 1/2" x 1/2" aluminum eggcrate
Architectural aluminum construction with extruded frame and roll-formed blades
Opposed blade damper with concealed operator design
Available on 2" standard dimensions
Custom sizes manufactured up to 1/16" increments

Finishes


W \| White		S \| Silver		M \| Mill

	W - White
	S - Silver
	M - Mill

Common Uses

The DARE5D is available with or without countersunk mounting holes, which makes it ideal for drywall sidewall and ceiling or T-Bar ceiling panel lay-in applications. Its cube design matches grid core luminaries.

Additional Options

DARE5-WF \| No Damper	DARE5C \| Core Only
DARE5D-WF-TB \| No Screw Holes	DARE5D-WF-AA \| All Aluminum

DARE5D-WF Submittal Form

DARE5-WF \| No Damper	DARE5C \| Core Only
DARE5D-WF-TB \| No Screw Holes	DARE5D-WF-AA \| All Aluminum
